Dropping the speed and the descent rate at altitude 6m

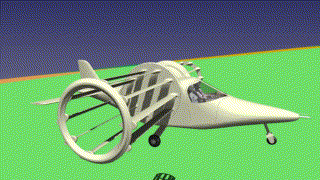

Liftoplane: dropping the speed and the descent rate at altitude 6m RSI: dropping the speed and the descent rate at altitude 6m

The time scaling is 1:10

During this operation, the rotors have a moderate forward winding speed of about 14.5 m/s, consuming a power of 25.0 kW. The aircraft is decelerating horizontally at a rate of about 0.097g, having a horizontal speed of 27.55 m/s. At the same time, the aircraft has a vertical descending speed of 2.89 m/s, which is decreasing at a rate of 0.041g. Inflow increased to 2.89 m/s. The aircraft operates like a lift going up at a speed of 4.06 m/s under a gliding wing with the equivalent LDR of 2.9. The aircraft is handled by using the biangular handling based on angles of attack with values of 38.0 and 9.0. The rotors have a PGS-state (17.9, -30.5, -5) with a bit decreased pitch and the significantly increased magnitude of the negative gain.





Dropping the speed at altitude 20m Dropping the speed and the descent rate at altitude 2m
