Dropping the speed at altitude 30m

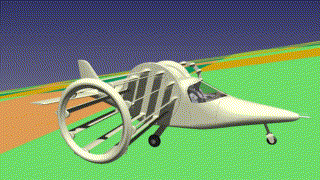

Liftoplane: dropping the speed at altitude 30m RSI: dropping the speed at altitude 30m

The time scaling is 1:10

During this operation, the rotors have an additionally decreased low backward winding speed of about 5.2 m/s, providing a power of 6.9 kW, which is used to recharge the accumulators. The aircraft is decelerating horizontally at a rate of about 0.051g, having a horizontal speed of 30.54 m/s. At the same time, the aircraft has a vertical descending speed of 5.10 m/s, which is increasing at a rate of 0.031g. Inflow increased to 2.62 m/s. The aircraft operates like a lift going down at a speed of 1.21 m/s under a gliding wing with the equivalent LDR of 5.5. The aircraft is handled by using the biangular handling based on angles of attack with values of 23.0 and 6.0. The rotors have a PGS-state (13.1, 34.3, -10) with the increased pitch and gain and the decreased inclination of the skew.





Dropping the speed at altitude 82m Dropping the speed at altitude 20m
