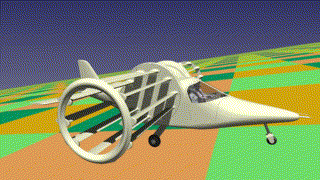

Enter in descent for landing at 165m



Liftoplane: enter in descent for landing at 165m RSI: enter in descent for landing at 165m

The time scaling is 1:10

During this operation, the rotors have a below-moderate backward winding speed of about 9.1 m/s, providing a power of 25.3 kW, which is used to recharge the accumulators. The aircraft almost is not accelerating in any direction, having a horizontal speed of 45.05 m/s and a vertical descending speed of 7.38 m/s. Inflow is only 1.84 m/s. The aircraft operates like a lift going down at a speed of 4.24 m/s under a gliding wing with the equivalent LDR of 13.8. The aircraft is handled by using the biangular handling based on angles of attack with values of 4.0 and 0.0. The rotors have a PGS-state (1.0, 26.9, -15) with the moderate positive gain and the high inclination of the skew.





Approaching at altitude 202m Dropping speed at altitude 82m
